Creating a Project in 3D Visual Programmer

Please read our Legal Disclaimer before executing any steps on this article

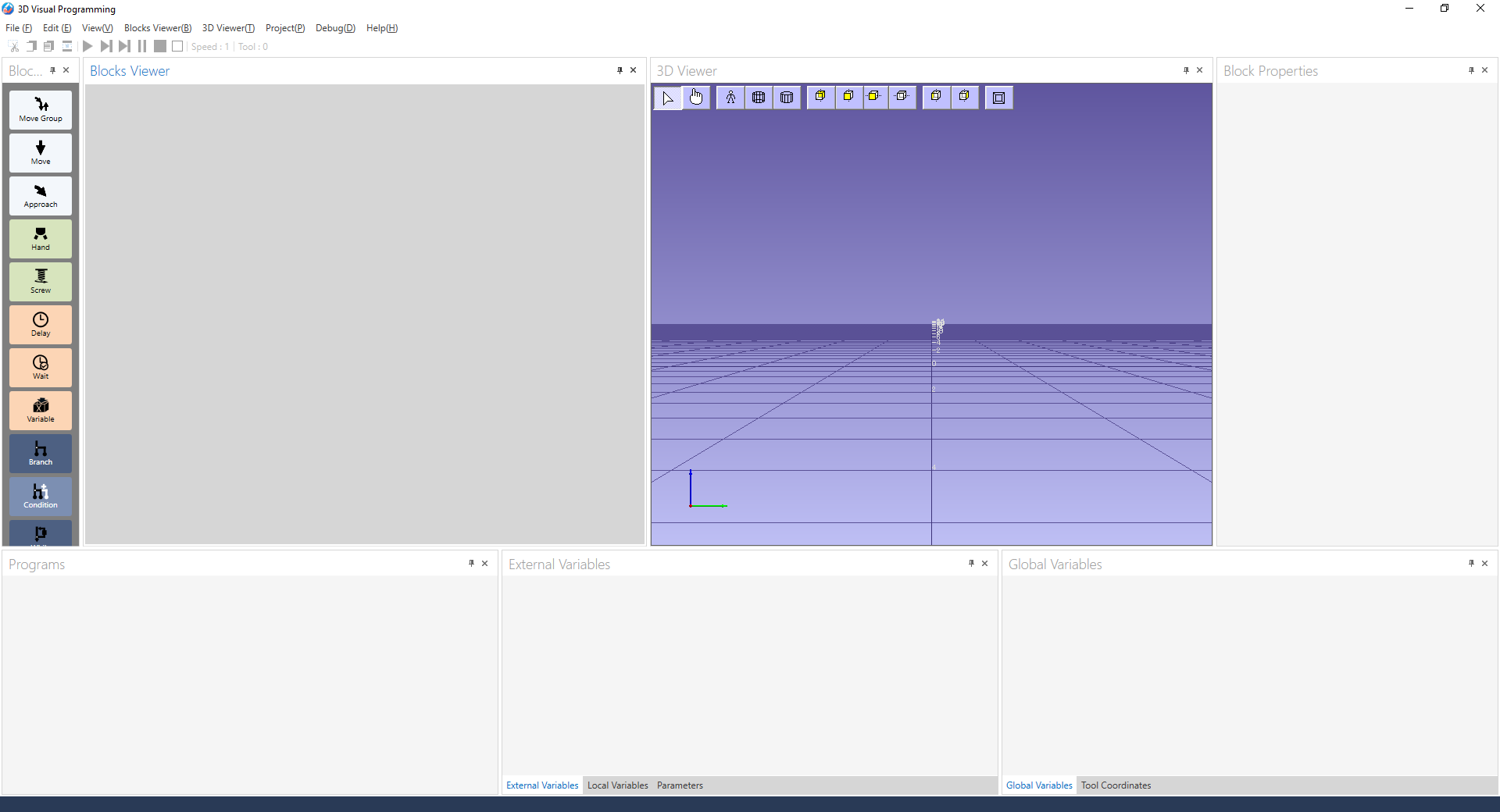

Here is what 3D Visual Programmer looks when you first open it.

Currently, there is no project loaded from Wincaps3. To create a new 3D Visual Programmer project, you will need to open an existing Wincaps3 project. FILE > NEW PROJECT

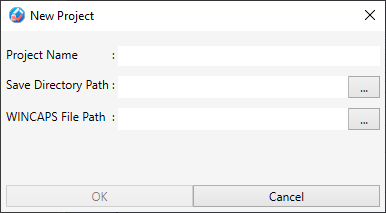

Type in a project name, select your save directory path, and select your Wincaps3 project file you want to use to create your project.

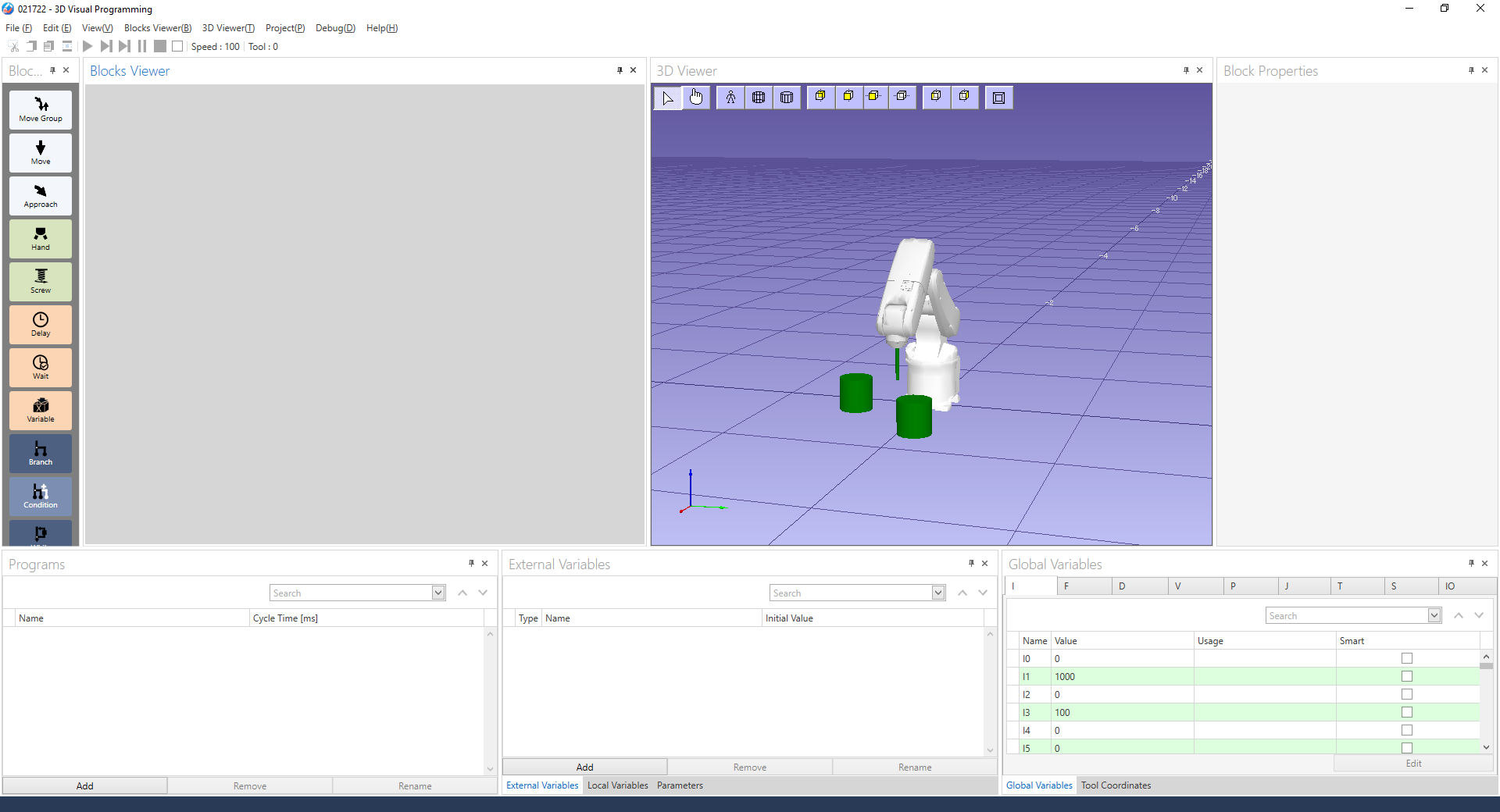

After you press OK, 3D Visual Programmer will import all the data from your Wincaps3 project. This will import any shape data that was loaded in your Wincaps3 project as well.
